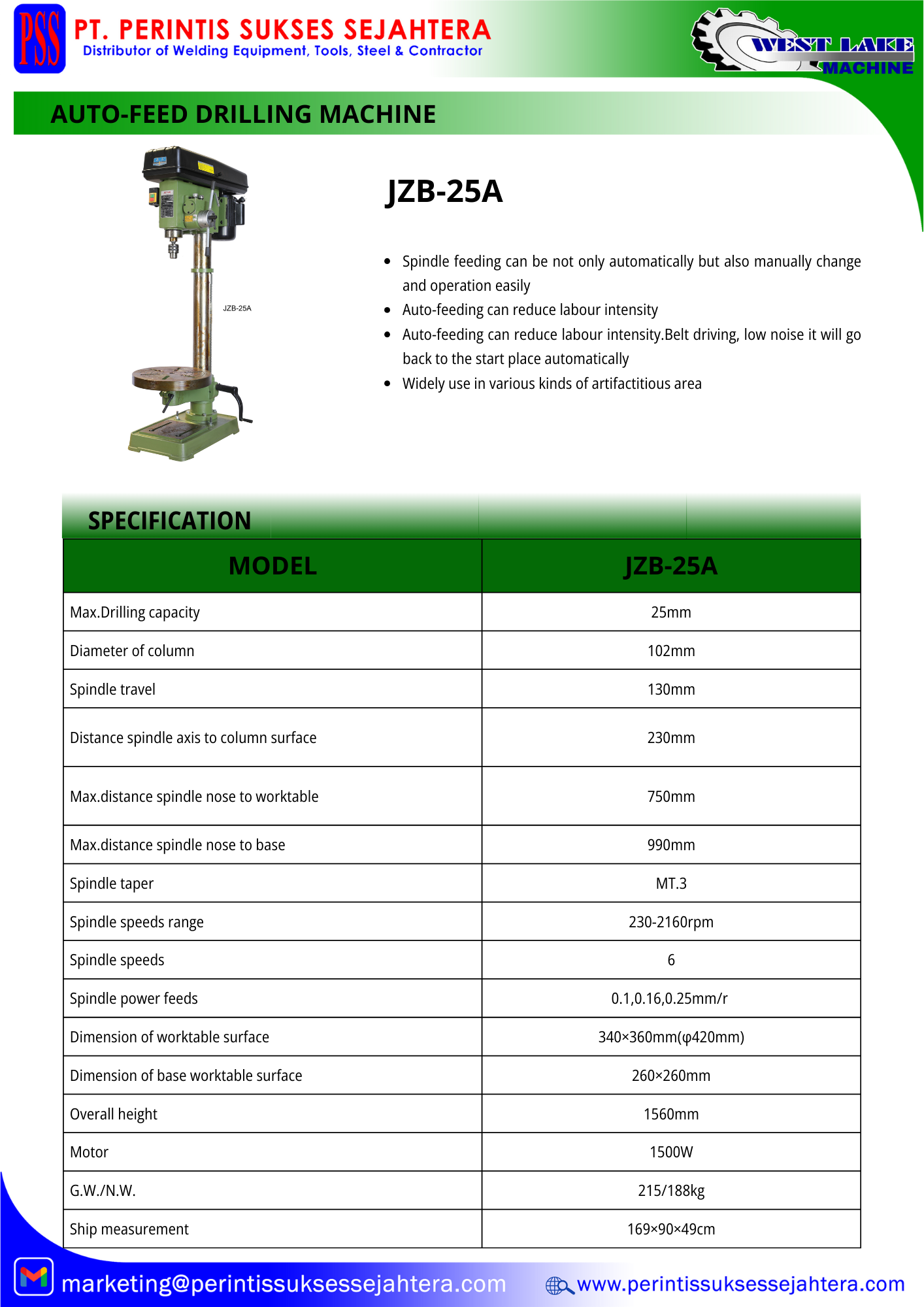

Detail Picture

Call

JZB-25A

Request Quotation

Spindle feeding can be not only automatically but also manually change and operation easily Auto-feeding can reduce labour intensity Auto-feeding can reduce labour intensity.Belt driving, low noise it will go back to the start place automatically Widely use in various kinds of artifactitious area

MODELJZB-25A
Max.Drilling capacity25mm
Diameter of column102mm
Spindle travel130mm
Distance spindle axis to column surface230mm
Max.distance spindle nose to worktable750mm
Max.distance spindle nose to base990mm
Spindle taperMT.3
Spindle speeds range230-2160rpm
Spindle speeds6
Spindle power feeds0.1,0.16,0.25mm/r
Dimension of worktable surface340×360mm(φ420mm)
Dimension of base worktable surface260×260mm
Overall height1560mm
Motor1500W
G.W./N.W.215/188kg
Ship measurement169×90×49cm
