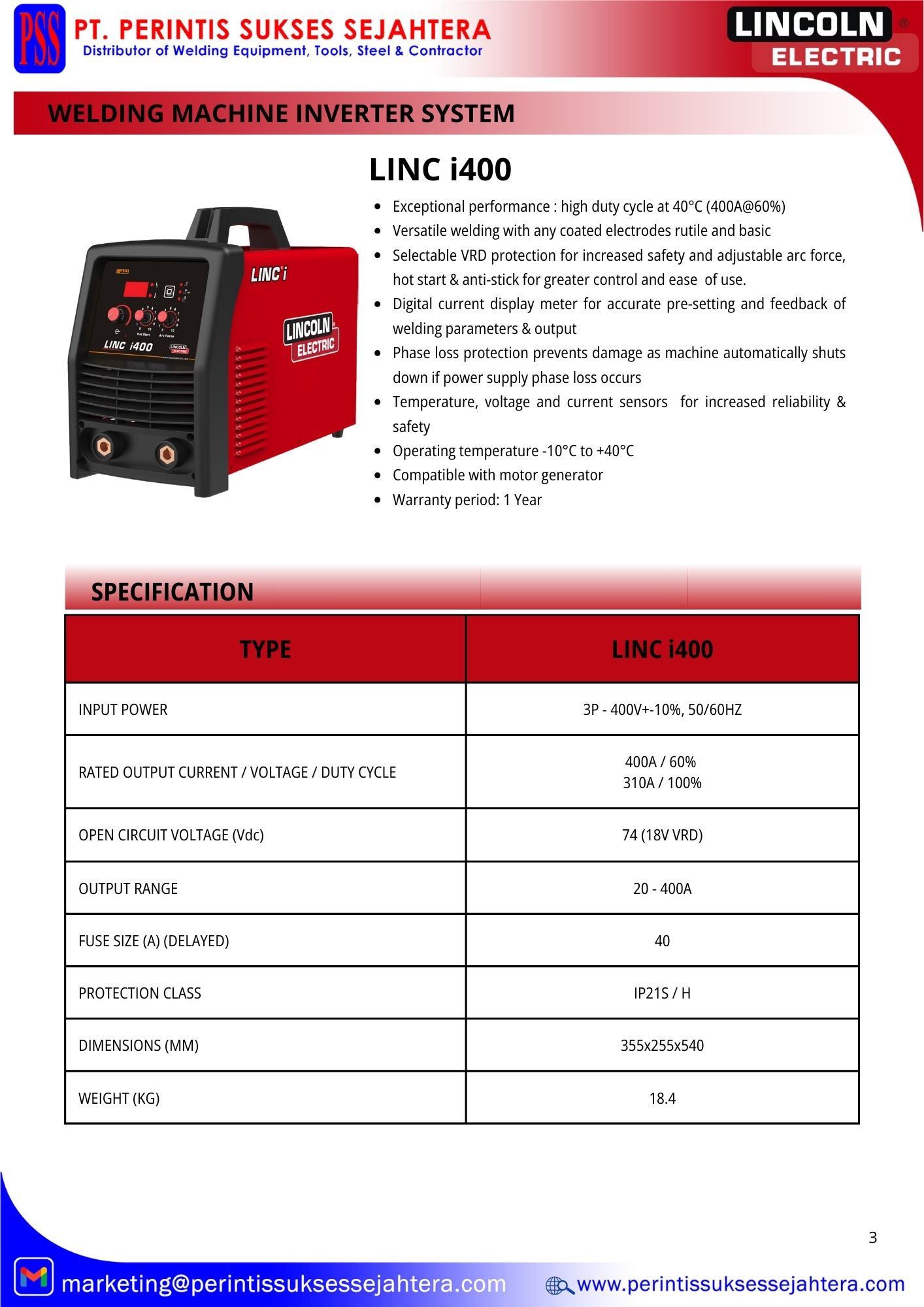

LINC I400

Exceptional performance : high duty cycle at 40°C (400A@60%) Versatile welding with any coated electrodes rutile and basic Selectable VRD protection for increased safety and adjustable arc force, hot start & anti-stick for greater control and ease of use. Digital current display meter for accurate pre-setting and feedback of welding parameters & output Phase loss protection prevents damage as machine automatically shuts down if power supply phase loss occurs Temperature, voltage and current sensors for increased reliability & safety Operating temperature -10°C to +40°C Compatible with motor generator Warranty period: 1 Year

TYPELINC i400
INPUT POWER3P - 400V+-10%, 50/60HZ
RATED OUTPUT CURRENT / VOLTAGE / DUTY CYCLE400A / 60%
OPEN CIRCUIT VOLTAGE (Vdc)74 (18V VRD)
OUTPUT RANGE20 - 400A
FUSE SIZE (A) (DELAYED)40
PROTECTION CLASSIP21S / H
DIMENSIONS (MM)355x255x540
WEIGHT (KG)18.4
