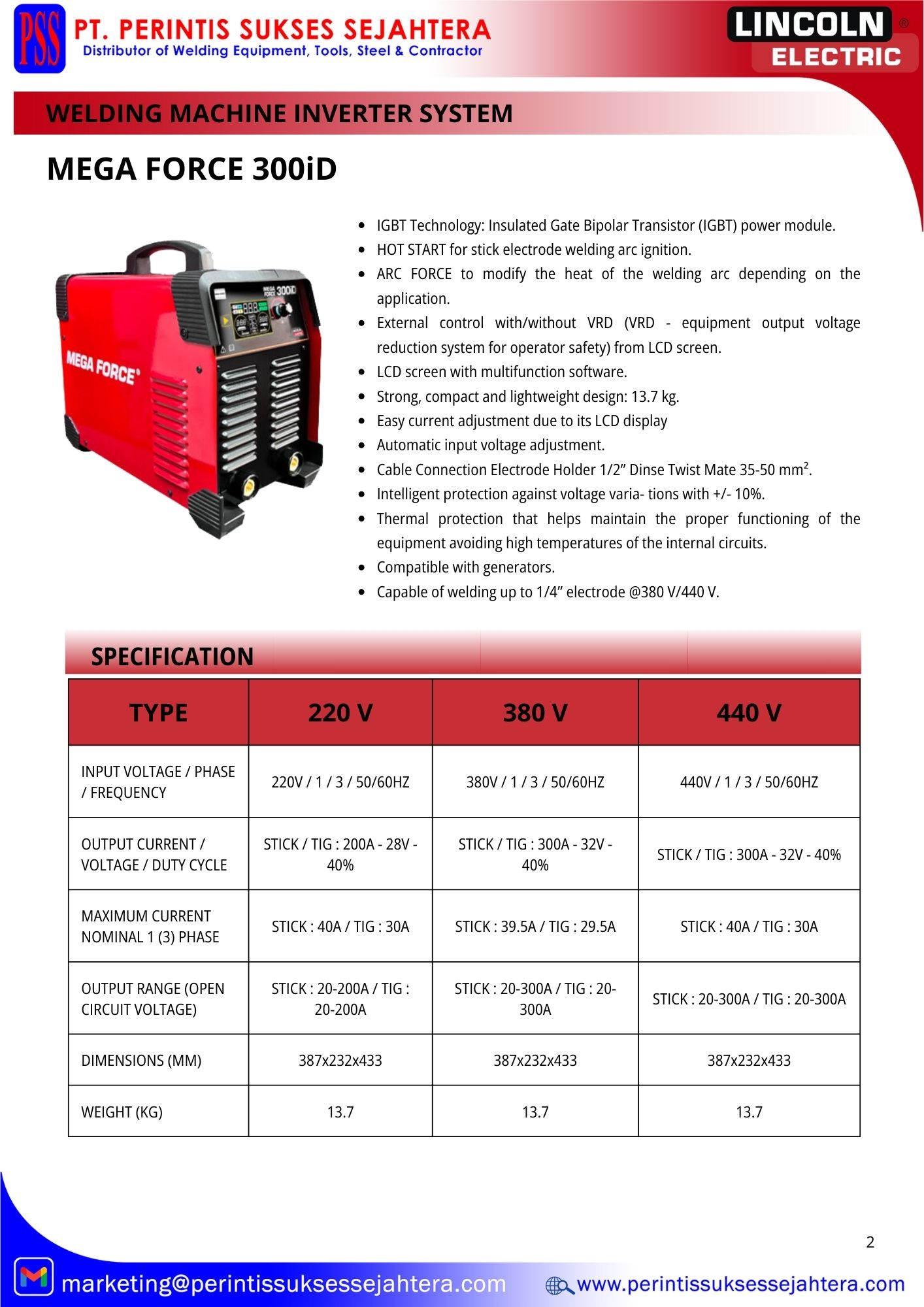

MEGA FORCE 300ID

IGBT Technology: Insulated Gate Bipolar Transistor (IGBT) power module. HOT START for stick electrode welding arc ignition. ARC FORCE to modify the heat of the welding arc depending on the application. External control with/without VRD (VRD - equipment output voltage reduction system for operator safety) from LCD screen. LCD screen with multifunction software. Strong, compact and lightweight design: 13.7 kg. Easy current adjustment due to its LCD display Automatic input voltage adjustment. Cable Connection Electrode Holder 1/2” Dinse Twist Mate 35-50 mm². Intelligent protection against voltage varia- tions with +/- 10%. Thermal protection that helps maintain the proper functioning of the equipment avoiding high temperatures of the internal circuits. Compatible with generators. Capable of welding up to 1/4” electrode @380 V/440 V.

TYPE220 V380 V440 V
INPUT VOLTAGE / PHASE / FREQUENCY220V / 1 / 3 / 50/60HZ380V / 1 / 3 / 50/60HZ440V / 1 / 3 / 50/60HZ
OUTPUT CURRENT / VOLTAGE / DUTY CYCLESTICK / TIG : 200A - 28V - 40%STICK / TIG : 300A - 32V - 40%STICK / TIG : 300A - 32V - 40%
MAXIMUM CURRENT NOMINAL 1 (3) PHASESTICK : 40A / TIG : 30ASTICK : 39.5A / TIG : 29.5ASTICK : 40A / TIG : 30A
OUTPUT RANGE (OPEN CIRCUIT VOLTAGE)STICK : 20-200A / TIG : 20-200ASTICK : 20-300A / TIG : 20-300ASTICK : 20-300A / TIG : 20-300A
DIMENSIONS (MM)387x232x433387x232x433387x232x433
WEIGHT (KG)13.713.713.7
