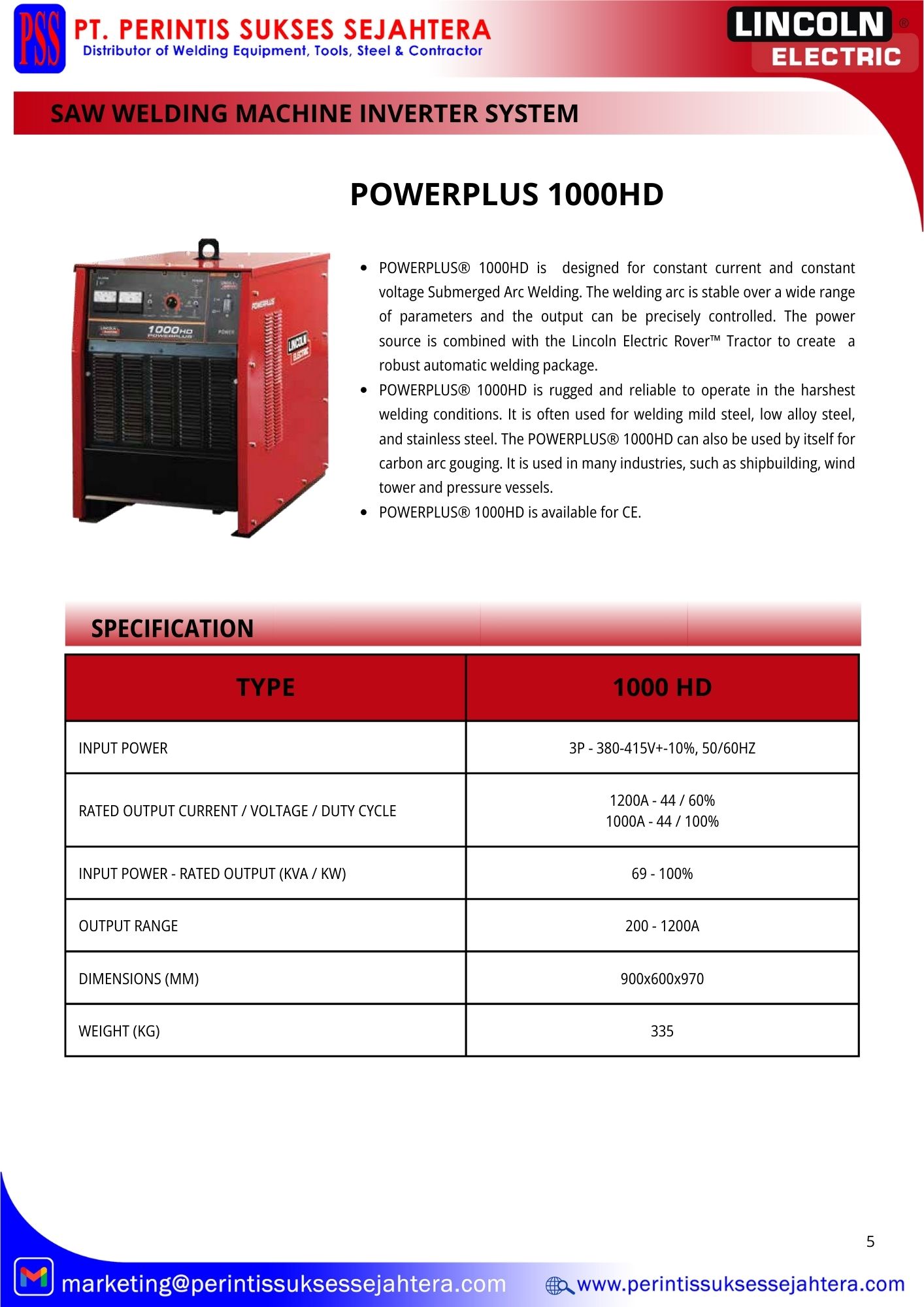

POWERPLUS 1000HD

POWERPLUS® 1000HD is designed for constant current and constant voltage Submerged Arc Welding. The welding arc is stable over a wide range of parameters and the output can be precisely controlled. The power source is combined with the Lincoln Electric Rover™ Tractor to create a robust automatic welding package.
 POWERPLUS® 1000HD is rugged and reliable to operate in the harshest welding conditions. It is often used for welding mild steel, low alloy steel, and stainless steel. The POWERPLUS® 1000HD can also be used by itself for carbon arc gouging. It is used in many industries, such as shipbuilding, wind tower and pressure vessels.
 POWERPLUS® 1000HD is available for CE.

TYPE1000 HD
INPUT POWER3P - 380-415V+-10%, 50/60HZ
RATED OUTPUT CURRENT / VOLTAGE / DUTY CYCLE1200A - 44 / 60%
INPUT POWER - RATED OUTPUT (KVA / KW)69 - 100%
OUTPUT RANGE200 - 1200A
DIMENSIONS (MM)900x600x970
WEIGHT (KG)335
