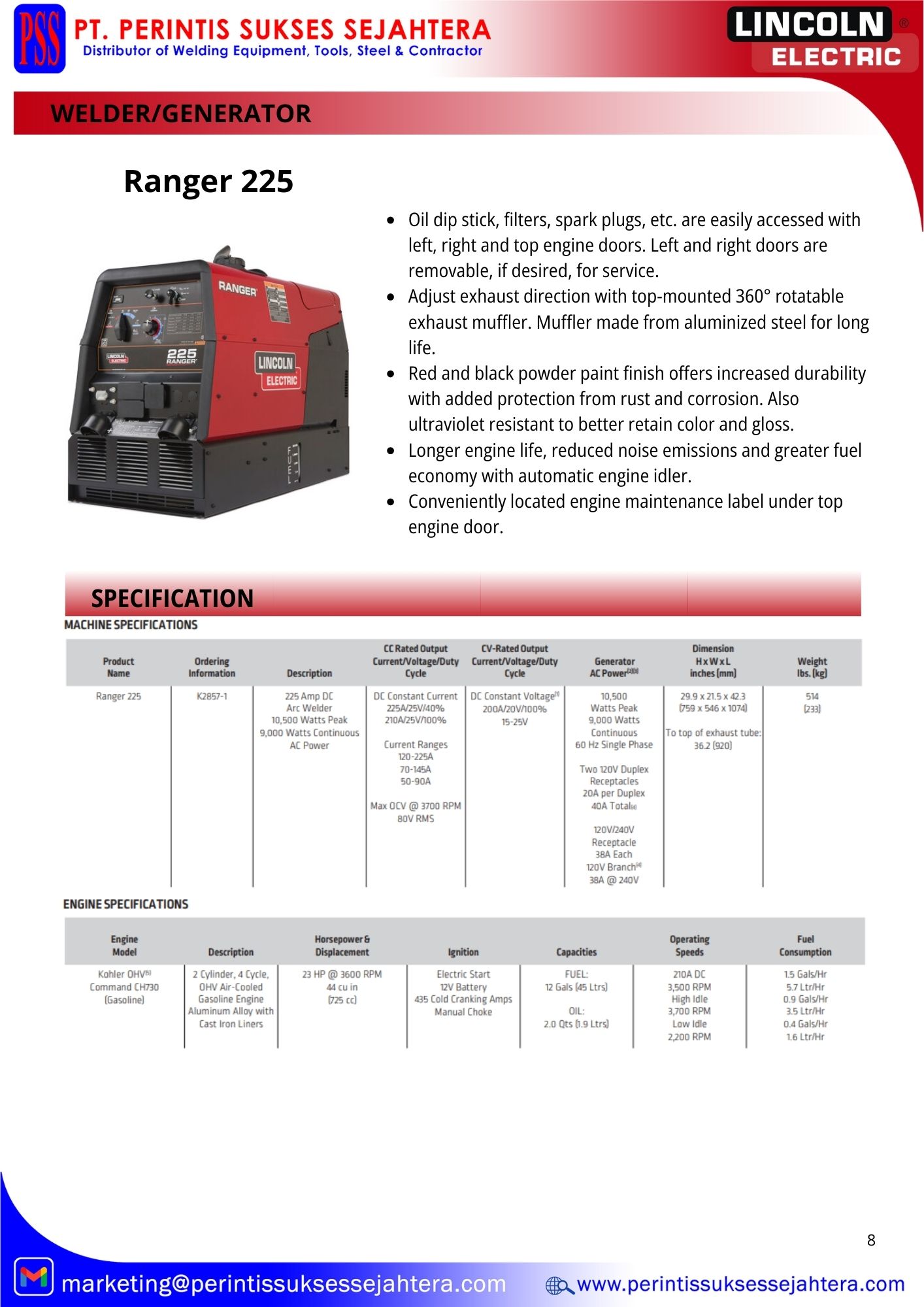

Oil dip stick, filters, spark plugs, etc. are easily accessed with left, right and top engine doors. Left and right doors are removable, if desired, for service.
Adjust exhaust direction with top-mounted 360° rotatable exhaust muffler. Muffler made from aluminized steel for long life.
Red and black powder paint finish offers increased durability with added protection from rust and corrosion. Also ultraviolet resistant to better retain color and gloss.
Longer engine life, reduced noise emissions and greater fuel economy with automatic engine idler.
Conveniently located engine maintenance label under top engine door.
| PRODUCT NAME | Ranger-225 |
| DESCRIPTION | 225 Amp DC Arc Welder 10,500 Watts Peak 9,000 Watts Continuous AC Power |
CC Rated Output Current/Voltage/Duty Cycle | DC Constant Current Current Ranges 120-225A 225A/25V/40% 210A/25V/100% 70-145A 50-90A Max OCV @ 3700 RPM 80V RMS |
CV-Rated Output Current/Voltage/Duty Cycle | DC Constant Voltage 200A/20V/100% 15-25V |
Generator AC Power | 10,500 Watts Peak 9,000 Watts Continuous 60 Hz Single Phase Two 120V Duplex Receptacles 20A per Duplex 40A Total 120V/240V Receptacle 38A Each 120V Branch 38A @ 240V |
Dimension HxWxL inches (mm) | 29.9 x 21.5 x 42.3 (759 x 546 x 1074) To top of exhaust tube: 36.2 (920) |
Weight lbs. (kg) | 514 (233) |
| ENGINE MODEL | Kohler OHV Command CH730 (Gasoline) |
| DESCRIPTION | 2 Cylinder, 4 Cycle, OHV Air-Cooled Gasoline Engine Aluminum Alloy with Cast Iron Liners |
Horsepower & Displacement | 23 HP @ 3600 RPM 44 cu in (725 cc) |
| Ignition | Electric Start 12V Battery 435 Cold Cranking Amps Manual Choke |
| Capacities | FUEL: 12 Gals (45 Ltrs) OIL: 2.0 Qts (1.9 Ltrs) |
Operating Speeds | 210A DC 3,500 RPM High Idle 3,700 RPM Low Idle 2,200 RPM |
Fuel Consumption | 1.5 Gals/Hr 5.7 Ltr/Hr 0.9 Gals/Hr 3.5 Ltr/Hr 0.4 Gals/Hr 1.6 Ltr/Hr |
